Injection into Masonry

In the case of injection into masonry the injection material is injected continuously via low pressure packers, which are in offset arrangement in the form of a grid, at low pressure (low pressure process). In this manner the faulty joints as well as the capillaries, pores and hollow cavities in the bricks are filled in with the injection material.

The continuous injection into the masonry is applied in cases when the previous surface sealant, e.g. an older bituminous sealant, has become defective.

  • For filling, sealing and consolidation of masonry

RECOMMENDED SYSTEMS

Acrylate Gel

  • Viscosity is comparable with the one of water. Thus hair cracks can be grouted successfully
  • Adjustable swelling ability
  • High mechanical strength
  • No risk of corrosion on the reinforcement

TECHNO-Injection 306

Rubber-elastic, 3 C acrylate gel, multi purpose applicable

  • Very low viscous acrylate gel
  • Very good penetration
  • Proven stability of at least 16 years

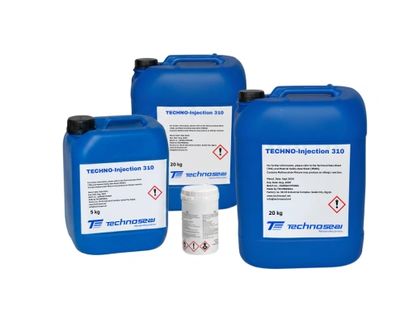

TECHNO-Injection 310

Adjustable, low viscous rigid acrylate resin with high final strength.

  • Low viscous
  • Very good penetration
  • High final strength

TECHNO-Injection 305

Adjustable, low viscous, quickly reacting 3 C acrylate gel

  • Quickly reacting

Polyurethane Resin

  • Penetrates even into hairline cracks
  • Flexible hence good movement assimilation

TECHNO-Injection 201

2-component injection resin based on polyurethane

  • Officially approved system
  • Proven against water pressure of 7 bars
  • Approved for use in CHF and LMSS plants

TECHNO-Injection 202

2-component high flexible injection resin based on polyurethane

  • Universal and economical
  • Highly flexible < -50°C

TECHNO-Injection 202 LV

Low-viscous, 2-component injection resin based on polyurethane

  • Very low viscous
  • For hairline cracks

TECHNO-Injection 270 L

Slowly curing, from ridged to tough elastic, 2K polyurethane resin, which foams up in contact with water

  • Stabilizing and sealing of masonry
  • Adjustable pot life (90 min – 58 sec.)
  • Groundwater friendly approved

Injection Cement / Injection Mortar

  • For subsequent injection in non-full face mortared bed joints
  • Injection into masonry
  • No addition of thickeners required

TECHNO-Injection 101

Single-component injection material based on extra-fine cement

  • Very high compressive-strength
  • For injection in cracks above 0.2 mm

TECHNO-Injection 102

Minerally, single component injection glue based on trass chalk according to DIN 1060

  • Dry and wet cracks >0,2 mm in brickstone and natural stone
  • No ettringite formation

TECHNO-Injection 103

Ready to use dry mixture based on cement, non-shrinking.

  • For injection in cracks above 0.375 mm
  • Non-shrinking
  • For VPRESS® injection hose with 10mm inner-Ø

TECHNO-Injection 104

Injection and anchor mortar

  • Does not shrink
  • Is easy to process
  • Frost protected
