waterproofing during tunnel boring

Sealing of concrete block sealants in the launch- and target-shaft of a Tunnel Boring Machine


Waterproofing of the sealing ring tunneling

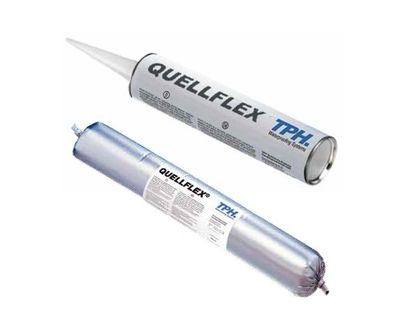

QUELLFLEX®

One component, hydrophilic sealing compound

  • Waterproofing in breakthrough of concrete blocks
  • Sealing of pipe breakthroughs
  • Additional sealing of tunneling pipes or concrete parts

Build up of sealing blocks for tunneling

Build up of sealing blocks for tunneling

  • Penetrates even into fine sandy soils
  • Durable sealing and consolidation in one step
  • Adjustable to soil conditions

PUR-O-STOP

1-component injection resin

  • Stopping of inrushing water
  • Filling of small voids ( < 300 liters)
  • Consolidation of soil / open rock formation

PUR-O-STOP FS

Very quickly reacting, from ridged to tough elastic, 2K polyurethane resin, which foams up in contact with water

  • Stopping of inrushing water
  • Filling ( < 300 liters)

PUR-O-STOP FS-L

Slowly curing, from ridged to tough elastic, 2K polyurethane resin, which foams up in contact with water

  • Groundwater friendly approved

RUBBERTITE®

Rubber-elastic, 3 C acrylate gel, multi purpose applicable

  • Very low viscous
  • Very good penetration
  • Proven stability of at least 16 years

ECOCRYL

Adjustable, low viscous, quickly reacting 3-component acrylate gel

  • Quickly reacting

SOLIDCRYL

Adjustable, low viscous rigid acrylate resin with high final strength. Specially to create ground stabilisation

  • Low viscous
  • Very good penetration
  • High final strength

Sealing While Driving the Tunnel Boring Machine

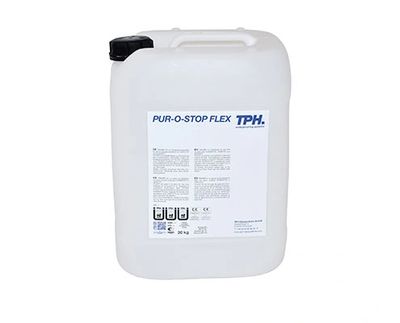

PUR-O-STOP FLEX

1-component highly flexible injection resin based on polyurethane

  • Stopping of inrushing water
  • Stable, flexible foam

FOAM SEAL PLUS

Fast-reacting, slightly flexibilized, strongly expanding injection foam based on silicate resin, contains flame retardants

  • Filling of cavities in mining, civil engineering and tunnel construction
  • Consolidating rock
  • Stopping of water ingress
  • Self-compacting due to high foam factor

Filling and solidification of geological formations

  • Durable sealing and consolidation in one step
  • Extremely rapid reaction times
  • Catalyst FS-TX for thixotropic adjustment

PUR-O-STOP FS

Very quickly reacting, from ridged to tough elastic, 2K polyurethane resin, which foams up in contact with water

  • Stopping of inrushing water
  • Filling ( < 300 liters)

PUR-O-STOP FS-L

Slowly curing, from ridged to tough elastic, 2K polyurethane resin, which foams up in contact with water

  • Groundwater friendly approved

PUR-O-STOP FS-F

From ridged to tough elastic, 2K polyurethane resin, which foams up in contact with water

  • Extremely fast reacting

FOAM SEAL PLUS

Fast-reacting, slightly flexibilized, strongly expanding injection foam based on silicate resin, contains flame retardants

  • Filling of cavities in mining, civil engineering and tunnel construction
  • Consolidating rock
  • Stopping of water ingress
  • Self-compacting due to high foam factor

SOLID SEAL

Silicate resin

  • Non-foaming
  • Ridged to tough elastic
  • Displaces water without foaming

SOLID SEAL SL

Injection resin based on silicate

  • Non-foaming
  • Displaces water without foaming
  • Low viscosity
  • High fluidity

Soil stabilization and waterproofing for a Tunnel Boring Mac

Ground stabilization – Gas Pipeline in Nature Conservation Area (Tunnel Boring Machine)

Acrylate Gel

  • Very low viscous acrylate gel with high flexibility
  • Adjustable to soil conditions
  • Groundwater friendly approved

RUBBERTITE®

Rubber-elastic, 3 C acrylate gel, multi purpose applicable

  • Very low viscous
  • Very good penetration
  • Proven stability of at least 16 years

Silicate Resin

  • Self compacting due to high foaming factor
  • Flame-retardant

FOAM SEAL PLUS

Fast-reacting, slightly flexibilized, strongly expanding injection foam based on silicate resin, contains flame retardants

  • Filling of cavities in mining, civil engineering and tunnel construction
  • Consolidating rock
  • Stopping of water ingress
  • Self-compacting due to high foam factor

Piling Injection Spear

  • Length 1000mm
  • External G1/4″ Thread
